FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

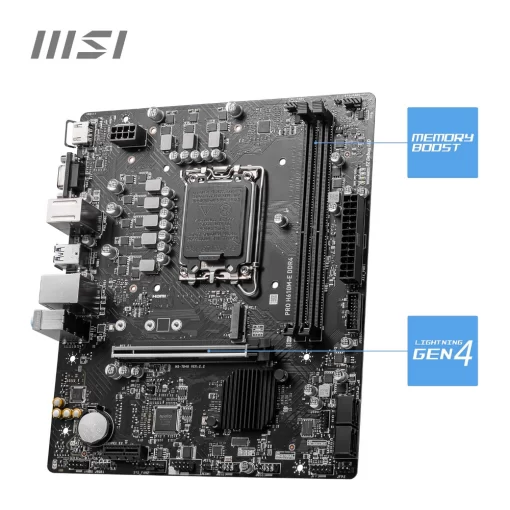

LIGHTNING GEN 4 PCI-E

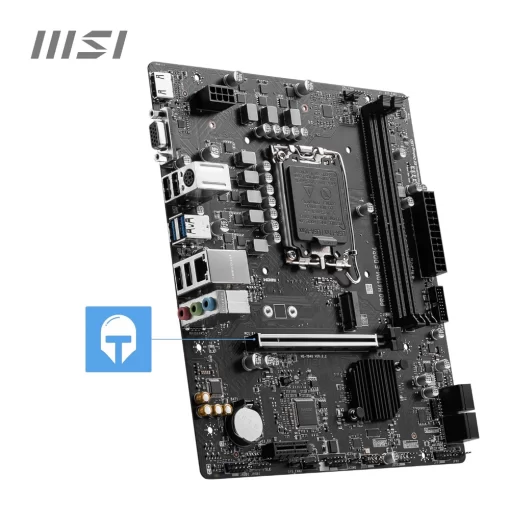

MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
| Chipset |
INTEL H610 |
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory |
2x DDR5, Maximum Memory Capacity 96GB |
| Memory Support DDR5 5600 MHz (by JEDEC & POR) |
| Supports Intel® XMP 3.0 OC |
| Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
|
| Onboard Graphics |
1x HDMI |
| Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz |
| 1x VGA |
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
|
| Slot |
1x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
|
| Storage |
1x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
|
| USB |
4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 2x USB 3.2 Gen1 Type A (Rear) |
| 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN |
Realtek® RTL8111H Gigabit LAN |
| Audio |
Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
|
| Internal IO |
1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 2x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 2x USB 3.2 Gen1 Type A ports |
|
| LED FEATURE |
4x EZ Debug LED |

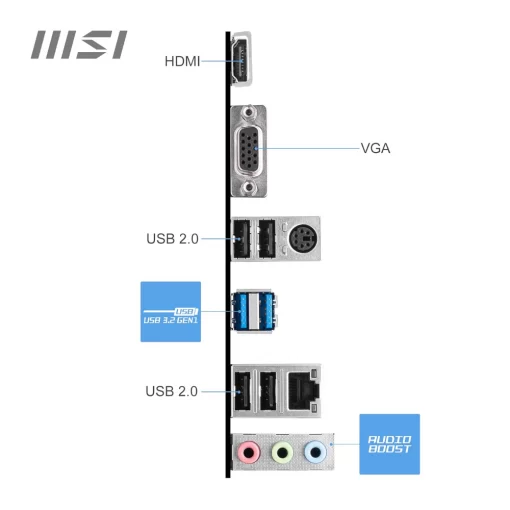

| BACK PANEL PORTS |
HDMI |
| VGA |
| Keyboard / Mouse |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| LAN port |
| Audio Connectors |
| USB 2.0 |
| USB 2.0 |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info |
mATX |
|
| 200mmx236.16mm |
