MSI B450M-A Pro Max II Am4 Micro ATX Series Motherboard

MSI B450M-A Pro Max II Am4 Micro ATX Series Motherboard - Image 2

MSI B450M-A Pro Max II Am4 Micro ATX Series Motherboard - Image 3

MSI B450M-A Pro Max II Am4 Micro ATX Series Motherboard - Image 4

MSI B450M-A Pro Max II Am4 Micro ATX Series Motherboard - Image 5

Sale!

MSI B450M-A Pro Max II Am4 Micro ATX Series Motherboard

Original price was: ₨22,499.00.Current price is: ₨21,999.00.

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
Supports DDR4 Memory, up to 4133 (OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
Audio Boost: Reward your ears with studio grade sound quality.
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance

Warranty : 2 year Official Distributor Warranty

International Shipment

Your orders are shipped seamlessly between countries

30 Days Warranty

You have the right to return your orders within 30 days.

Secure Payment

Your payments are secure with our private security network.

Description
Reviews (0)

Description

MSI B450M-A PRO MAX II DDR4 AM4 Micro-ATX, Motherboard Price in Pakistan

Model

Brand	MSI
Model	B450M-A PRO MAX II

Supported CPU

CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processors

Chipsets

Chipset	AMD B450

Memory

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
Memory Feature	Supports Dual-Channel mode Supports non-ECC, UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

Expansion Slots

PCI Express 3.0 x16	PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI Express x1	PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

Storage Devices

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
SATA RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Onboard Audio

Audio Chipset	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Realtek 8125 2.5Gbps LAN controller
Max LAN Speed	2.5Gbps

Rear Panel Ports

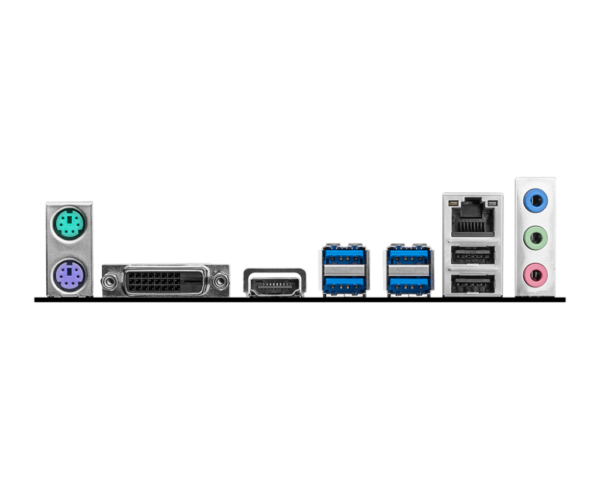

Back I/O Ports	2 x PS/2 Keyboard/Mouse 1 x DVI-D 1 x HDMI 4 x USB 3.2 Gen 1 5Gbps (Type-A) 1 x 2.5G LAN 3 x Audio connectors 2 x USB 2.0

Internal I/O Connectors

Onboard USB	4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
Other Connectors	1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0)

Physical Spec

Form Factor	Micro ATX
Dimensions (W x L)	9.3″ x 7.9″
Power Pin	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR)

Windows 11 Compatibility

Windows 11	Supported
