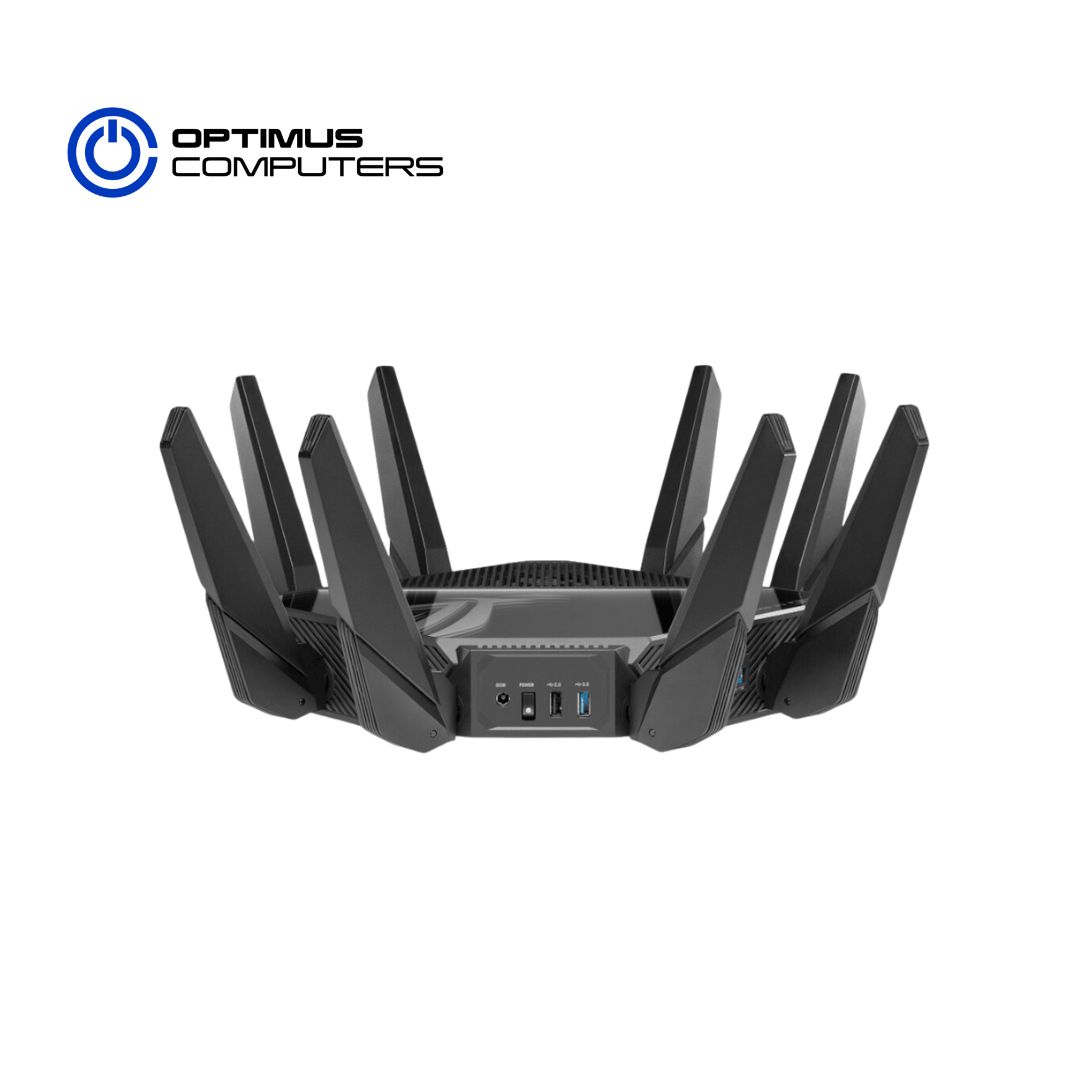

ASUS GT-AXE16000 WiFi 6E Gaming Router 16000 Mbps PK

Description

Model

ROG Rapture GT-AXE16000

Model Name

GT-AXE16000

Network Standard

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

AXE16000 ultimate AX/AXE performance

WiFi Data Rate

2.4GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5G-1Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

5G-2Hz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

6GHz AX: 4×4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 8 (non-detachable)
Internal antenna x 4

Transmit / Receive

2.4GHz 4×4

5GHz-1 4×4

5GHz-2 4×4

6GHz 4×4

Processor

2.0GHz quad-core processor

Memory

256MB NAND flash and 2GB DDR4 RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports

1 x 2.5 Gigabit WAN Port
2 x 10 Gigabit WAN/LAN Ports
4 x Gigabit LAN Ports
1 x USB 3.2 Gen 1 Port
1 x USB 2.0 Port

Buttons

WPS Button, LED Button, Reset Button, Power Switch

LED Indicator

Power x 1
2.4G x 1
5GHz-1 x 1
5GHz-2 x 1
6G x 1
10GE Port x 1
LAN x 1
WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current

Package Content

GT-AXE16000 WiFi Gaming Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Product Weight (g)

2425 g

Product Dimensions

354 * 354 * 193 mm

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Game Boost / Acceleration

Game Radar

WTFast

ROG_First

OpenNAT (Game Profile)

Parental Control

“Allow you to block access to unwanted websites and apps.”

Parental Control Customized Internet Schedule

• Maximum Parental Control profile : 64

• Maximum Parental Control content filter rule : 64

Guest Network

“The Guest Network provides Internet connection for guests but restricts access to your local network.”

• Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

Security

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE

WPS

Let’s Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

VPN

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

— Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN

Internet Connection Type : Internet Connection Type :

Internet Connection Type : • PPPoE

Internet Connection Type : • PPTP

Internet Connection Type : • L2TP

Internet Connection Type : • Automatic IP

Internet Connection Type : • Static IP

Dual WAN

WAN Aggregation

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : NAT Passthrough :

NAT Passthrough : • PPTP Pass-Through

NAT Passthrough : • L2TP Pass-Through

NAT Passthrough : • IPSec Pass-Through

NAT Passthrough : • RTSP Pass-Through

NAT Passthrough : • H.323 Pass-Through

NAT Passthrough : • SIP Pass-Through

NAT Passthrough : • PPPoE Relay

LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering

File System : File System :

File System : • HFS+

File System : • NTFS

File System : • vFAT

File System : • ext2

File System : • ext3

File System : • ext4

Safely Remove Disk

AiCloud

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges

User Interface

Operating system : ASUSWRT

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Connection Diagnosis

Auto Firmware Update
